Item No. 1005009065331923
LED Flashlight Driver 22mm/20mm Driver Board High Brightness Medium Brightness Low Brightness Flashing SOS Five Modes 18W DIY
Delivery estimate
Checkout is coming soon.
- Sold by
- Expydrop
- Ships from
- The supplier's warehouse
Expydrop buys this item from the supplier and has it shipped directly to you. How it works
Specifications
- Brand Name
- warm and happy
- High-concerned chemical
- none
- Nominal Voltage
- 120V-240V
- Is Smart Device
- no
- Origin
- Mainland China
- Output Signal
- DC
- Output Voltage
- 4
- Certification
- CCC
- Features
- five modes available
- Input Voltage
- AC
- Item Type
- Lighting Transformers
- Weight
- 0.01
- power
- 18W
- Voltage
- DC4.2V
- size
- 20mm(0.79inch), 22mm(0.87inch)
- Dimming mode
- highlight: When DC4.2V 6000mA±10%
- 1. First gear
- The first part of the dimming 5 mode
- 2. Second gear
- Mid-bright When DC4.2V 3000MA ±10%
- 3. Third gear
- low light When DC4.2V 1800mA±10%
- 4. The fourth gear
- burst flash 8HZ
- 5. Fifth gear
- SOS
Description
power:18W
Hx-20029F five speed with temperature control,

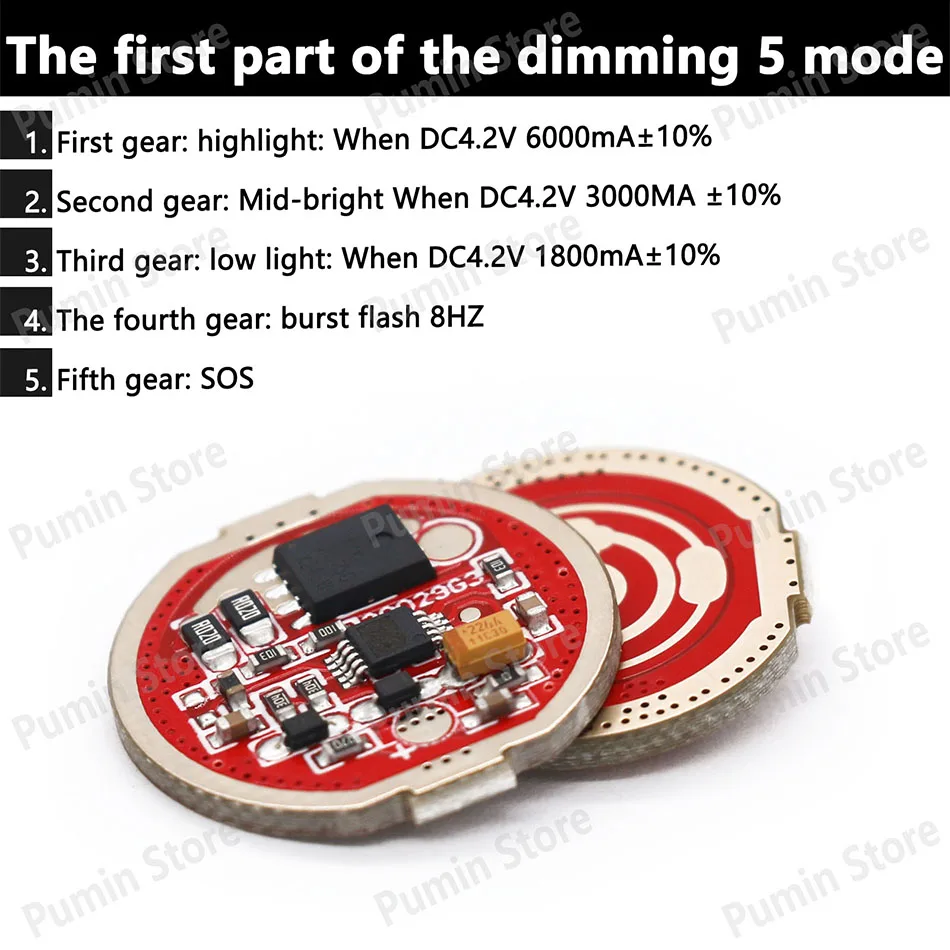

Part 1 Dimming Mode:
1. First gear: highlight: When DC4.2V 6000mA±10%
2. Second gear: Mid-bright When DC4.2V 3000MA ±10%
3. Third gear: low light: When DC4.2V 1800mA±10%
4. The fourth gear: burst flash 8HZ
5. Fifth gear: SOS
Part 2 Memory Function: If any gear is turned off and restarted after 1 second, it will be saved in the current gear
Part 3 Low Voltage Reminder Function: When the voltage is below 2.9V, the light automatically enters a slow flashing state, indicating that the battery is out of power
Part 4 Reverse Connection Protection Function: Protect the product from damage when the battery or power supply is reversed。
