Item No. 1005009348501108
LED Lamp Driver Light Transformer 2-3W 3-5W 4-7W 8-12W 15-18W 18-24W 250mA Current Power Supply Adapter for LED Spotlight Bulb
From €1.55 to €3.71 depending on options
Delivery estimate
Checkout is coming soon.
- Sold by
- Expydrop
- Ships from
- The supplier's warehouse
Expydrop buys this item from the supplier and has it shipped directly to you. How it works
Specifications
- Brand Name
- warm and happy
- High-concerned chemical
- none
- Nominal Voltage
- 120V-240V
- Is Smart Device
- no
- Origin
- Mainland China
- Output Signal
- DC
- Material
- Plastic and smart chips
- Plug Type
- None
- Certification
- CCC, ce, CQC, ROHS
- Features
- All Isolated driver
- Input Signal
- AC
- Input Voltage
- 85-265V
- Item Type
- Lighting Transformers
- Power
- 2-3W/3-5W/4-7W/8-12W/15-18W/18-24W
- Input voltage
- AC85-265V 50/60Hz
- Output voltage
- DC6-11V/DC9-18V/DC12-25V/DC25-42V/DC45-65V/DC54-82V
- Electric current
- 240mA/250mA
- 2-3W Size
- 40x25x18mm (1.57x0.98x0.71inch)
- 3-5W Size
- 41x26x19mm (1.61x1.02x0.75inch)
- 4-7W Size
- 51x29x20mm (2.01x1.14x0.79inch)
- 8-12W Size
- 66x32x21mm (2.60x1.26x0.83inch)
- 15-18W Size
- 65x30x20mm (2.56x1.18x0.79inch)
- 18-24W Size
- 81x35x23mm (3.19x1.38x0.91inch)
- Note
- No-load test is prohibited
- Application Place 1
- LED Spotlight / LED Bulb / LED Corn Light
- Application Place 2
- LED Strip Light / LED Tube Light / LED Table Lamp
- Application Place 3
- LED track light / LED bulb
- Application Place 4
- LED panel light / LED chandelier / living room lamp
- Feature 1
- The voltage is automatically balanced based on lamp performance
- Feature 2
- Current stability
- Feature 3
- Use for ceiling lights
Description
Product details

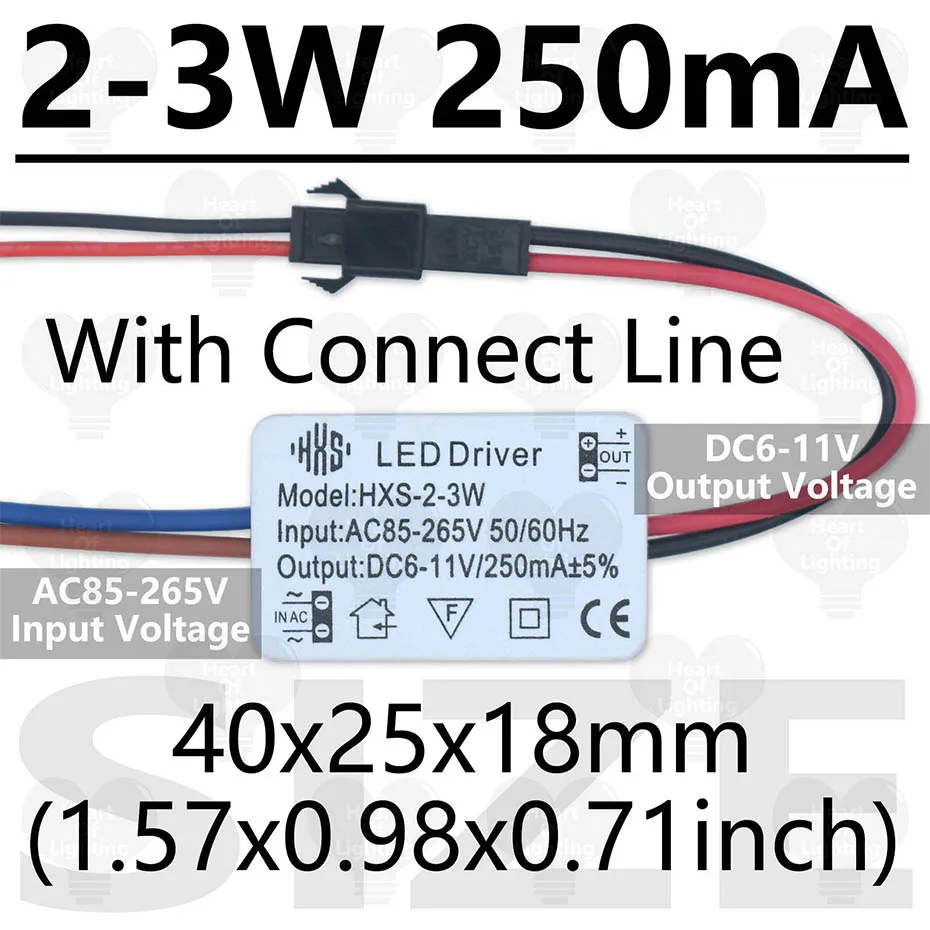

Power: 2-3W
Input voltage: AC85-265V 50/60Hz
Output voltage: DC6-11V
Electric current: 250mA
Size: 40x25x18mm
(1.57x0.98x0.71inch)
Power: 3-5W
Input voltage: AC85-265V 50/60Hz
Output voltage: DC6-11V
Electric current: 240mA
Size: 41x26x19mm
(1.61x1.02x0.75inch)
Power: 4-7W
Input voltage: AC85-265V 50/60Hz
Output voltage: DC6-11V
Electric current: 250mA
Size: 51x29x20mm
(2.01x1.14x0.79inch)
Power: 8-12W
Input voltage: AC85-265V 50/60Hz
Output voltage: DC25-42V
Electric current: 250mA
Size: 66x32x21mm
(2.60x1.26x0.83inch)
Power: 15-18W
Input voltage: AC85-265V 50/60Hz
Output voltage: DC45-65V
Electric current: 250mA
Size: 65x30x20mm
(2.56x1.18x0.79inch)
Power: 18-24W
Input voltage: AC85-265V 50/60Hz
Output voltage: DC54-82V
Electric current: 250mA
Size: 81x35x23mm
(3.19x1.38x0.91inch)
